Power line адаптер EDIMAX HP-5101WN 500M + WIFI

Power line адаптер EDIMAX HP-5101WN 500M + WIFI

Продуктов номер: EDIM-HP-5101WN

Дайте първото мнение за този продукт

Наличност: Неналичен

110,90 лв.

Бърз преглед

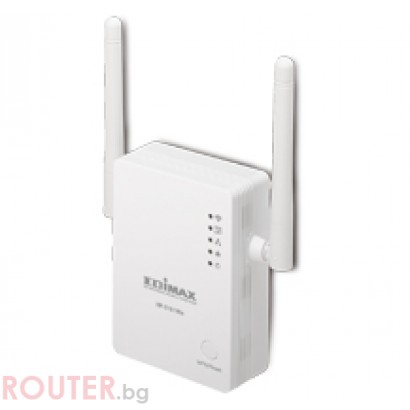

Мрежово устройство EDIMAX HP-5101WN Nano Home Plug 500M power line адаптер + WIFI

Детайли

Eдимакс HP-5101WN Nano Home Plug 500M power line адаптер + WIFI

Hardware
1 x AC plug
1 x 10/100Mbps Ethernet LAN port
1 x WPS/Reset button
1 x Group button
LED indicators: wireless, WPS, Ethernet, Powerline , power

Standards
IEEE 802.11b/g/n
IEEE 1901
IEEE 802.3
IEEE 802.3u

Effect Data Rate
TCP: Up to 95 Mbps effective throughput
UDP: Up to 95 Mbps effective throughput

Powerline Frequency Band
2-68MHz (with Mask)

Modulation Schemes
OFDM symbol modulation on line synchronization 1024/256/64/16/8-QAM, QPSK, BPSK, ROBO modulation

QoS
4 levels priority based contention access, and multi segment bursting
8 levels VLAN priority field, TOS field
QoS classification by destination MAC address and IP port
Powerline: 500Mbps (PHY rate)
Powerline Operating Range
Up to 300 meters

Wireless Frequency & Modulation

240024835MHz
802.11b: CCK, DQPSK, DBPSK
802.11g: 64QAM, 16QAM, QPSK, BPSK, DSSS
802.11n: 64QAM, 16QAM, QPSK, BPSK

Wireless Output Power
11n: 141.5dBm
11g: 151.5dBm
11b: 161.5dBm

Wireless Features

Support auto channeling
Legacy and high throughput modes
20MHz/40MHz Bandwidth
Support 64/128-bit WEP, 802.1x, WPA, and WPA2 for wireless security
Multiple BSSID support

[http://www.edimax.com/au/produce_detail.php?pd_id=488&pl1_id=11&pl2_id=41]

Допълнителна информация

Производител EDIMAX
Гаранционен срок (месеца) 24
