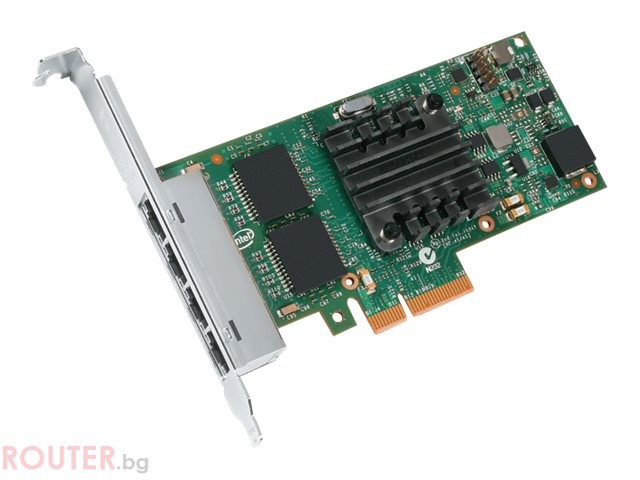

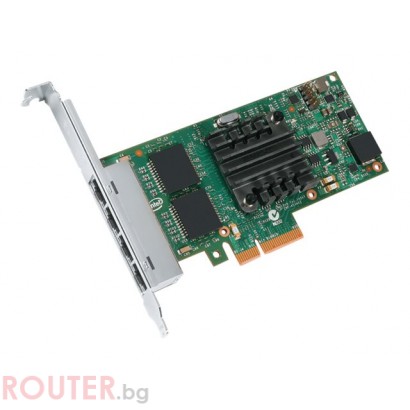

Мрежово устройство Fujitsu Ethernet Controller 4x1 Gbit Pcie X4 Intel I350-t4 S26361-F4610-L504

Мрежово устройство Fujitsu Ethernet Controller 4x1 Gbit Pcie X4 Intel I350-t4 S26361-F4610-L504

Продуктов номер: S26361-F4610-L504

Дайте първото мнение за този продукт

Наличност: Неналичен

620,90 лв.

Бърз преглед

FUJITSU Ethernet Controller 4x1 Gbit PCIe x4 Intel I350-T4

Детайли

Marketing Description
Trust the network communication of the Ethernet LAN adapter. The Intel I350-T4 Ethernet LAN adapter, based on the Intel 1GbE LAN Powerville chip, offers four Gigabit Ethernet ports for 10/100/1000BaseT.
Product Features
  • Based on the Intel 1 GbE LAN Powerville I350 AM4 chip
    Industry-leading, energy-efficient is designed for next-generation 1 Gigabit performance and multi-core processors.
  • Power management such as Ethernet Efficient Ethernet (EEE) and DMA Coalescing (DMAC) support
    This contributes to increased efficiency and reduces power consumption.
  • 10/100/1000 Mbps
    Automatically compatible with Ethernet, fast Ethernet, and Gigabit Ethernet networks.
  • Virtualization support via VMDq and SR-IOV
    Multi-port cards provide the platform with the port density required for virtualized environments.
General
Device Type Network adapter
Form Factor Plug-in card - low profile
Interface (Bus) Type PCI Express 2.1 x4
PCI Specification Revision PCIe 2.1
Networking
Ports Gigabit Ethernet x 4
Connectivity Technology Wired
Cabling Type Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Data Transfer Rate 1 Gbps
Network / Transport Protocol TCP/IP, UDP/IP, iSCSI
Status Indicators Port transmission speed, link/activity
Features Flow control, auto-negotiation, VLAN support, wake on LAN (WOL), IPv6 support, Jumbo Frames support, Virtual Machine Device Queues (VMDq), IPv4 support, Receive Side Scaling (RSS), Single Root I/O Virtualization (SR-IOV), Link Aggregation Control Protocol (LACP), TCP Segmentation Offload (TSO), PXE 2.0 support, Extended Message-Signaled Interrupts (MSI-X), Precision Time Protocol (PTP)
Compliant Standards IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.3az
Processor / Memory
Processor 1 x Intel I350-AM4
Expansion / Connectivity
Interfaces 4 x 1000Base-T - RJ-45
Miscellaneous
Included Accessories Low-profile bracket, full-height bracket
Power
Power Consumption Operational 5 Watt
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 55 °C
Compatibility Information
Designed For Fujitsu PRIMERGY CX122 S1, CX250 S1, CX250 S2, CX2550 M1, CX2550 M1 Liquid Cooling, CX2550 M4, CX2550 M4 liquid cooling, CX2550 M5, CX2560 M4 air cooling, CX2560 M4 liquid cooling, CX2560 M5, CX2570 M4 PCI air cooling, CX2570 M4 SXM2 liquid cooling, CX270 S1, CX270 S2, CX272 S1, RX100 S6, RX100 S7, RX100 S7p, RX100 S8, RX1330 M1, RX1330 M2, RX1330 M3, RX1330 M4, RX200 S6, RX200 S7, RX200 S8, RX2510 M2, RX2520 M1, RX2520 M5, RX2530 M1, RX2530 M1-L, RX2530 M2, RX2530 M4, RX2530 M4 Liquid Cooling, RX2530 M5, RX2530 M5 Liquid Cooling, RX2530 M6, RX2540 M1, RX2540 M1-L, RX2540 M2, RX2540 M2 Storage Spaces, RX2540 M4, RX2540 M5, RX2540 M6, RX2560 M1, RX300 S6, RX300 S7, RX300 S8, RX350 S7, RX350 S8, RX4770 M1, RX4770 M2, RX4770 M3, RX500 S7, RX600 S5, RX600 S6, RX900 S1, RX900 S2, SX150 S8 Universal Storage Server, SX350 S8 Universal Storage Server, TX120 S3, TX120 S3p, TX1320 M1, TX1320 M2, TX1320 M3, TX1320 M4, TX1330 M1, TX1330 M2, TX1330 M3, TX1330 M4, TX140 S1, TX140 S1p, TX140 S2, TX150 S7, TX150 S8, TX150 S8r, TX200 S6, TX200 S7, TX2540 M1, TX2550 M4, TX2550 M5, TX2560 M1, TX2560 M2, TX300 S6, TX300 S7, TX300 S8

Допълнителна информация

Производител FUJITSU
Гаранционен срок (месеца) 12
