| Marketing Description | |

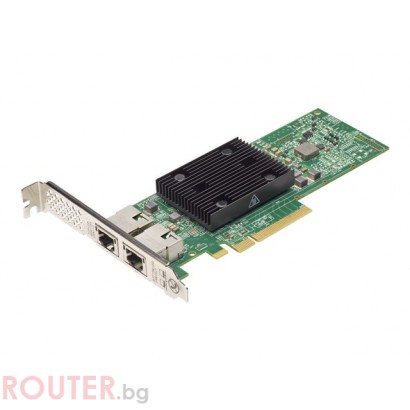

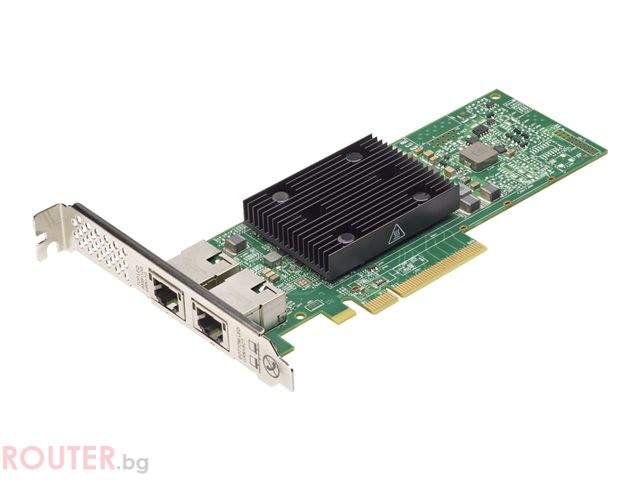

| The Broadcom NX-E 10Gb Base-T Ethernet Adapters are dual-port 10GBASE-T adapters that are fully compliant with the IEEE 802.3an standard and provide a low-cost solution for 10 Gb Ethernet using copper wiring. 10GBASE-T is a low-cost way to enter the 10 Gb Ethernet space. By using standard UTP twisted pair cabling, you eliminate the need for transceivers or fiber optic cabling. The Broadcom NX-E ML2 10Gb 2-Port Base-T Ethernet Adapter is a special mezzanine LAN-on-motherboard (mezzanine LOM) form factor adapter that also supports the Network Controller Sideband Interface (NC-SI) for communication with the server's onboard XClarity Controller (XCC) management processor. This support enables the sharing the network interface with the XCC and the operating system, thereby eliminating the need for a separate management network. | |
| Product Features | |
| |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 3.0 x8 |
| Networking | |
| Ports | 10Gb Ethernet x 2 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10GBase-T |
| Data Link Protocol | 10 Gigabit Ethernet |
| Features | IPv6 support, Data Center Bridging Exchange (DCBX) support, IPv4 support, Large Send Offload (LSO), Large Receive Offload (LRO), Receive Side Scaling (RSS), Data Center Bridging (DCB), TCP Segmentation Offload (TSO), Extended Message-Signaled Interrupts (MSI-X), Generic Routing Encapsulation (GRE), Transmit Side Scaling (TSS), iSCSI boot, TCP/IP checksum offload, UDP/IP checksum offload, RDMA over Converged Ethernet (RoCE), Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE), Jumbo Frames support (up to 9000 bytes) |
| Compliant Standards | IEEE 802.3ab, IEEE 802.3an, IEEE 802.1Qbb, IEEE 802.1Qaz |
| Processor / Memory | |
| Processor | 1 x Broadcom BCM57416 |
| Expansion / Connectivity | |
| Interfaces | 2 x network - RJ-45 |
| Miscellaneous | |
| Compliant Standards | UL, BSMI CNS 13438 Class A, RRL, CSA 22.2 No. 950, MIC, ICES-003 Class A, UL 60950-1, EN 60950-1, cTUVus, EN55024 Class A, VCCI V-3, KN24, KN22 Class A, EN55022:2010, CNS 14336, EN 55024:2010, FCC CFR47 Part 15 A |
| Dimensions & Weight | |
| Width | 1.5 cm |
| Depth | 16.8 cm |
| Height | 6.9 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Compatibility Information | |
| Designed For | Lenovo ThinkAgile VX 1SE Certified Node 7Z58 Lenovo ThinkAgile VX Certified Node 7Y94, 7Z12 Lenovo ThinkAgile VX1320 Appliance 7Z58 Lenovo ThinkAgile VX2330 Appliance 7Z62 Lenovo ThinkAgile VX3330 Appliance 7Z62 Lenovo ThinkAgile VX3331 7Z62 Lenovo ThinkAgile VX3530-G Appliance 7Z63 Lenovo ThinkAgile VX3575-G Integrated System 7D43 Lenovo ThinkAgile VX5530 Appliance 7Z63 Lenovo ThinkAgile VX5575 Integrated System 7D43 Lenovo ThinkAgile VX7330-N Appliance 7Z62 Lenovo ThinkAgile VX7530 Appliance 7Z63 Lenovo ThinkAgile VX7575 Integrated System 7D43 Lenovo ThinkAgile VX7576 Certified Node 7D43 Lenovo ThinkAgile VX7820 Appliance 7Z13 Lenovo ThinkSystem SD530 Lenovo ThinkSystem SE350 7Z46 Lenovo ThinkSystem SR250 Lenovo ThinkSystem SR530 Lenovo ThinkSystem SR550 Lenovo ThinkSystem SR570 Lenovo ThinkSystem SR590 Lenovo ThinkSystem SR630 Lenovo ThinkSystem SR630 V2 7Z71 Lenovo ThinkSystem SR645 7D2X Lenovo ThinkSystem SR650 Lenovo ThinkSystem SR650 V2 7D15, 7Z73 Lenovo ThinkSystem SR665 7D2V, 7D2W Lenovo ThinkSystem SR850 Lenovo ThinkSystem SR860 Lenovo ThinkSystem SR950 Lenovo ThinkSystem ST250 Lenovo ThinkSystem ST50 Lenovo ThinkSystem ST550 Lenovo ThinkSystem ST650 V2 7Z74, 7Z75 |
Допълнителна информация
| Производител | LENOVO |
|---|---|
| Гаранционен срок (месеца) | 12 |
