| Marketing Description | |

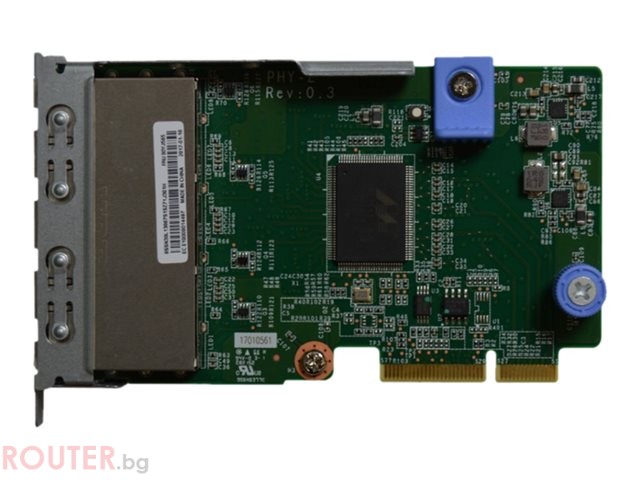

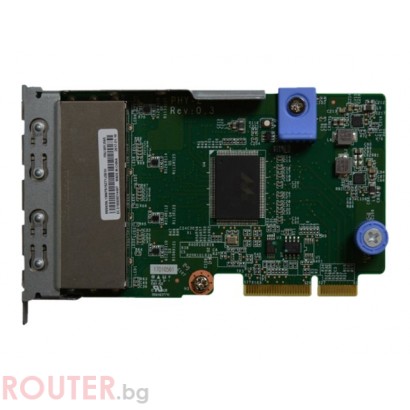

| The Intel Ethernet Connection X722 is a network controller embedded into the Intel C624 Lewisburg PCH chipset of Lenovo ThinkSystem servers. The controller connects to available 10 GbE and 1 Gigabit Ethernet LAN-on-motherboard (LOM) adapter cards and onboard connectors to provide a comprehensive 1 GbE/10 GbE networking solution for ThinkSystem customers. | |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | LAN-on-motherboard (LOM) |
| Networking | |
| Ports | Gigabit Ethernet x 4 |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet |
| Data Transfer Rate | 1 Gbps |
| Capacity | Virtual functions: 128 |
| Remote Management Protocol | RMON |
| Features | Flow control, VLAN support, wake on LAN (WOL), IPv6 support, Quality of Service (QoS), RDMA support, Virtual Machine Device Queues (VMDq), PXE support, Large Send Offload (LSO), Receive Side Scaling (RSS), UEFI support, Link Aggregation Control Protocol (LACP), Energy Efficient Ethernet, Class of Service (CoS), tagged VLAN, Extended Message-Signaled Interrupts (MSI-X), TCP/IP checksum offload, UDP/IP checksum offload, Virtual Ethernet Port Aggregator (VEPA), Network Controller Sideband Interface (NC-SI), Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE), Virtual Ethernet Bridge (VEB), TLP Processing Hint (TPH), Advanced Packet Filtering, Intel Virtual Technology (VT), Jumbo Frames support (up to 9728 bytes) |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.1Qbg |
| Processor / Memory | |
| Processor | 1 x Marvell 88E1543 |
| Expansion / Connectivity | |
| Interfaces | 4 x Ethernet 1000 - RJ-45 |
| Miscellaneous | |
| Compliant Standards | ICES-003 Class A, RoHS, UL 60950-1 Second Edition, FCC Part 15 A, KCC Class A, VCCI Class A, RCM, RRA Class A |
| Software / System Requirements | |
| Software Included | Intel PROSet |
| OS Required | Microsoft Windows Server 2012 R2, SuSE Linux Enterprise Server 11 SP4, Microsoft Windows Server 2016, VMware ESXi 6.5, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 6.9, SuSE Linux Enterprise Server 12 SP2, VMware ESXi 6.0 update 3 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Compatibility Information | |
| Designed For | Lenovo ThinkAgile VX 1U Certified Node 7Y93 Lenovo ThinkAgile VX Certified Node 7Y94, 7Z12 Lenovo ThinkAgile VX7820 Appliance 7Z13 Lenovo ThinkSystem SR630 Lenovo ThinkSystem SR650 Lenovo ThinkSystem SR850 Lenovo ThinkSystem SR860 Lenovo ThinkSystem SR950 |
Допълнителна информация
| Производител | LENOVO |
|---|---|
| Гаранционен срок (месеца) | 12 |
