| Marketing Description | |
| The Catalyst 9200 series delivers the superior features. It's highly secure and always on, and it provides IT simplicity, resulting in a great experience every time. | |
| Product Features | |
| |
| General | |

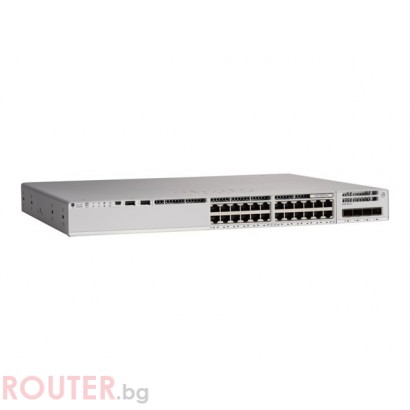

| Device Type | Switch - 24 ports - L3 - smart - stackable |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE+) |
| Power Over Ethernet (PoE) | PoE+ |
| Performance | Stacking bandwidth: 160 Gbps Switching bandwidth: 128 Gbps Forwarding rate: 190.4 Mpps |
| Capacity | Virtual networks: 4 IPv4 routing table entries: 4000 IPv6 routing table entries: 2000 ACL scale entries: 1600 Packet buffer size: 6 MB VLAN IDs: 4096 Switched virtual interfaces (SVIs): 1000 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | OSPF, RIP-1, RIP-2, VRRP, PIM-SSM, policy-based routing (PBR), RIPng |
| Remote Management Protocol | NETCONF, RESTCONF |
| Encryption Algorithm | 128-bit AES |
| Features | Cisco StackWise Technology, EIGRP Stub Routing, Flexible NetFlow (FNF), MACsec support, built-in ASIC, Control plane protection (CoPP), Blue Beacon LED, Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, DNA support, Superior QoS |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3bz |
| RAM | 4 GB |
| Flash Memory | 4 GB |
| Built-in Devices | RFID tag |
| Expansion / Connectivity | |
| Interfaces | 24 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Miscellaneous | |
| MTBF | 422,310 hours |
| Compliant Standards | Plug and Play, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35 |
| Software / System Requirements | |
| Software Included | Cisco Network Essentials |
| Dimensions & Weight | |
| Width | 4.4 cm |
| Depth | 44.5 cm |
| Height | 35 cm |
| Weight | 5.5 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance parts replacement - lifetime - response time: next business day |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 90% (non-condensing) |
Допълнителна информация
| Производител | CISCO |
|---|---|
| Тип | Fixed Port |
| VLAN | VLAN IDs: 4096; IEEE 802.1Q VLAN |
| Размер на таблица с MAC адреси | 32000 MAC address |
| Капацитет на трафик | 190.4 Mpps |
| Скорост на сериен трансфер на данните | 128 Gbps |
| Захранване | Dual field-replaceable power supplies, Default primary AC power supply: PWR-C5-600WAC |
| Брой портове | 24 |
| Характеристики за сигурност | Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems |
| Гаранционен срок (месеца) | 99 |
