| Marketing Description | |

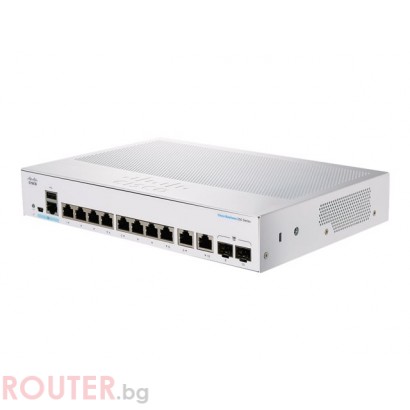

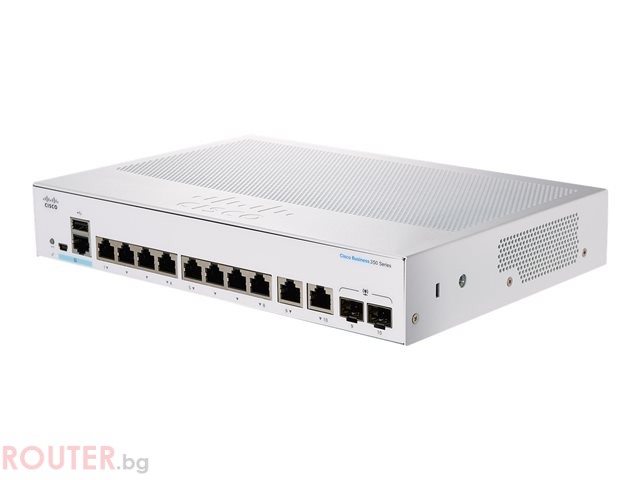

| The Cisco Business CBS350-8T-E-2G switch is part of the fully managed switch line that delivers reliable and secure connectivity for small business networks. These switches accelerate your digital transformation by delivering full Layer 2/3 capabilities, intuitive web dashboard, advanced networking features, and PoE+ support. | |
| Product Features | |
| |
| General | |
| Device Type | Switch - 8 ports - L3 - Managed |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 + 2 x combo Gigabit Ethernet/Gigabit SFP |
| Performance | Switching capacity: 20 Gbps Forwarding performance (64-byte packet size): 14.88 Mpps |
| Capacity | Link aggregation groups: 8 VLANs supported: 4094 Buffer capacity (MB): 1.5 MB |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 2KB |
| Routing Protocol | IGMP, policy-based routing (PBR), CIDR |
| Remote Management Protocol | SNMP 1, RMON, SNMP 3, SNMP 2c, SSH, SSH-2, ICMP |
| Encryption Algorithm | SSL |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Features | DHCP support, ARP support, VLAN support, DoS attack prevention, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, DHCP server, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), fanless, Multicast VLAN Registration (MVR), Dynamic VLAN Support (GVRP), Type of Service (ToS), Storm Control, IP source guard, Bridge protocol data unit (BPDU), Voice VLAN, Secure Core Technology (SCT), LLDP-MED, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), Private VLAN, ISATAP tunnel support, STP loop guard, Weighted Round Robin (WRR), multiple tag protocol identifiers (TPID) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az |
| Processor | X ARM: 800 MHz |
| RAM | 512 MB |
| Flash Memory | 256 MB |
| Status Indicators | Status, link/activity |
| Expansion / Connectivity | |
| Interfaces | 8 x 10/100/1000 Base-T RJ-45 2 x Gigabit LAN RJ-45/SFP 1 x console (USB) Type B 1 x USB Type A 1 x console RJ-45 |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| MTBF | 2,171,669 hours |
| Compliant Standards | UL 60950, CSA C22.2, FCC CFR47, USGv6 |
| Localisation | United Arab Emirates, Indonesia, Israel, South Africa, Vietnam, Ukraine, Egypt, Thailand, Philippines, Korea, Russia, Europe, Turkey |
| Dimensions & Weight | |
| Width | 26.8 cm |
| Depth | 18.5 cm |
| Height | 4.4 cm |
| Weight | 1.7 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - lifetime - response time: next business day Technical support - web support - 1 year Technical support - phone consulting - 1 year |
| Environmental Parameters | |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -25 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 10 - 90% (non-condensing) |
Допълнителна информация
| Производител | CISCO |
|---|---|
| Тип | Fixed Port, Managed |
| VLAN | Support for up to 4094 VLANs simultaneously; Port-based and 802.1Q tag-based VLANs; MAC/protocol-based VLAN; IP subnet-based/Management VLAN; Private VLAN; PVE; Guest/unauthenticated VLAN; Dynamic VLAN assignment via RADIUS server; Voice/Multicast TV VLAN |
| Размер на таблица с MAC адреси | 16K |
| Капацитет на трафик | 14.88 Mpps |
| Скорост на сериен трансфер на данните | 20 Gbps |
| Захранване | External (100 to 240V, 50 to 60 Hz) |
| Брой портове | 8 |
| Характеристики за сигурност | SSL; IEEE 802.1X port security; ARP; IP Source Guard; DHCP; IPMB; IPv6 First Hop Security; SCT; DoS |
| Гаранционен срок (месеца) | 99 |
